LZSH Om3 SM G652A Outdoor Fiber Optic Cable For Network

Place of Origin : Guangdong, China

Brand Name : HYG

Model Number : HYG-GYTA-24-9/125

Supply Ability : 500000 Meter/Meters per Month different cable,Supply ability will be different

Packaging Details : 1 km or 2 km /rell

MOQ : 1000 Meter/Meters

Price : $0.25 - $15.88 / Meter

Number of Conductors : >= 10

Core quality : 2-288 core

Optical fiber type 1 : SM G652A/B/C/D or G - 655 A/B/C, G - 657 A/B

Optical fiber type 2 : MM 62.5/125 um, um, OM3 50/125

Cable square number : 0.75 MM, 1.0 MM, 1.5 MM, 2.5 MM, 4 MM, 6 MM

Sheath material : PVC/LSZH/PU

Sheath color : White/black/green/yellow/orange

Pay cable size : nominal cable size, also but agreed size

Delivery length : normal 1 km or 2 km

Oper.Temp : -20℃~60℃

OEM : CAN BE SUPPLY

Type : COAXIAL

Port : shenzhen

Contact Now

24 core outdoor LZSH fiber optic cable,24 core outdoor optical fiber cable for network solution

24 core outdoor LZSH fiber optic cable for network solution

Description

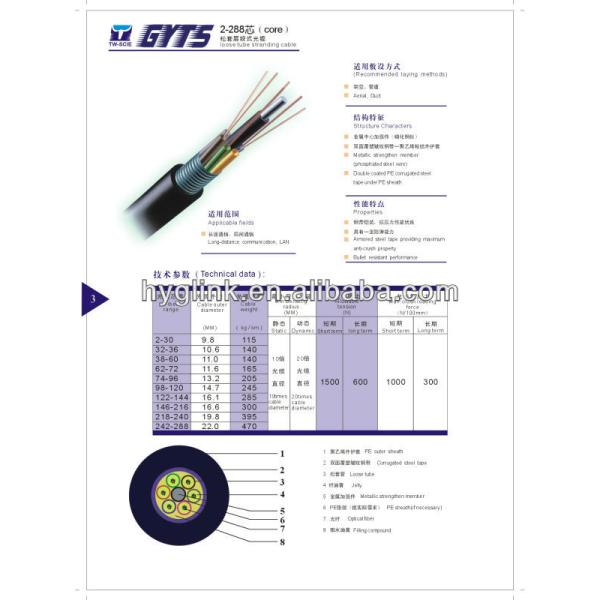

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Characteristics

1.Good mechanical and temperature performance

2· High strength loose tube that is hydrolysis resistant

3· Special tube filling compound ensure a critical protection of fiber

4· Crush resistance and flexibility

5· PSP enhancing moisture-proof

6· Two parallel steel wires ensure tensile strength

7· Small diameter, light weight and friendly installation

8· Long delivery length

9.2-288 core

Standards

GYXTW cable complies with Standard YD/T 769-2003.

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20°C)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Technical Parameters

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
GYXS/GYXTW-2~12	2~12	10.0	105	600/1500	300/1000	10D/20D
GYXS/GY XTW-2~12	2~12	10.6	124	1000/3000	1000/3000	10D/20D
GYXS/GY XTW-14~24	14~24	12.5	149	1000/3000	1000/3000	10D/20D
GYXS/GY XTW-26~36	26~36	14.0	190	1000/3000	1000/3000	10D/20D
GYXS/GY XTW-38~48	38~48	15.0	216	1000/3000	1000/3000	10D/20D

Storage/Operating Temperature : -40°C to + 70°C
