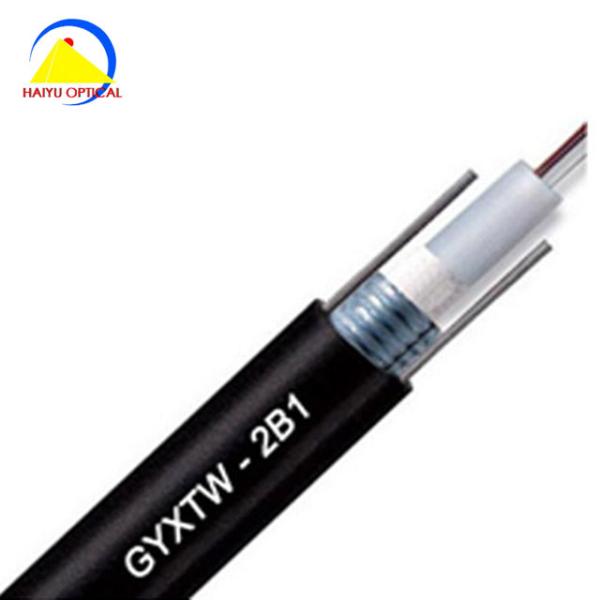

GYXTW Outdoor Fiber Cable With HDPE Sheath Water Blocking

Place of Origin : Guangdong, China

Brand Name : HYG

Model Number : G-039

Supply Ability : 100000 Meter/Meters per Day

Packaging Details : International Standard package

MOQ : 10 Meter/Meters

Price : $1.00 - $300.00 / Meter

COLOR : black

Out sheath : HDPE

Water blocking material : Water swellable tape

Water swellable tape : Filler rod

Filling type : Safety filled cable core

Duct type : Central loose tube

Model : Fiber optic cable GYXTW

Usage : Central loose tube parallel steel wire

Core : Up to 48 fibers

Number of Conductors : >= 10

Port : SHENZHEN

Contact Now

high quality and cheap price outdoor fiber cable GYXTW

2b1/4b1/6b1/12b1

1)Application:Electrical power transmission system
2)Low loss, low dispersion
3)Span: 100m-250
4)OEM order is welcome

HYG
1)Application:Electrical power transmission system
2)Low loss, low dispersion
3)Span: 100m-250
4)OEM order is welcome

HYG Optical Fiber Cable:

1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties.
3. Anti-electromagnetism ability.
4. Use high intensity aramid yarn as anti-pulling component, strong, light and small cable diameter, suitable for different climatic situation and installation span.
5. Special AT (Anti-Track) outer sheath protection, strong anti-electro-corrosion ability.

Quantity of fibers	2~288
Promised tension (N)	Long-term 1000 short-term 3000
Promised pulling tension (N100/mm)	Long-term 1000 Short-term 3000
Min bend radius(mm)	Long-term 15D Short-term 30D
Operating temperature (oC)	-40~+60
