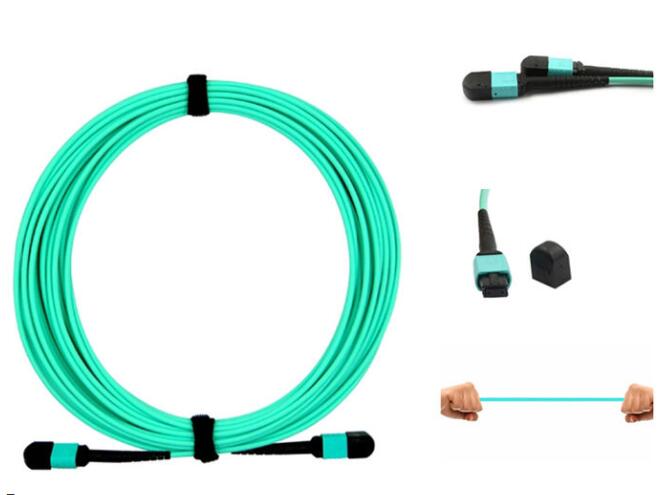

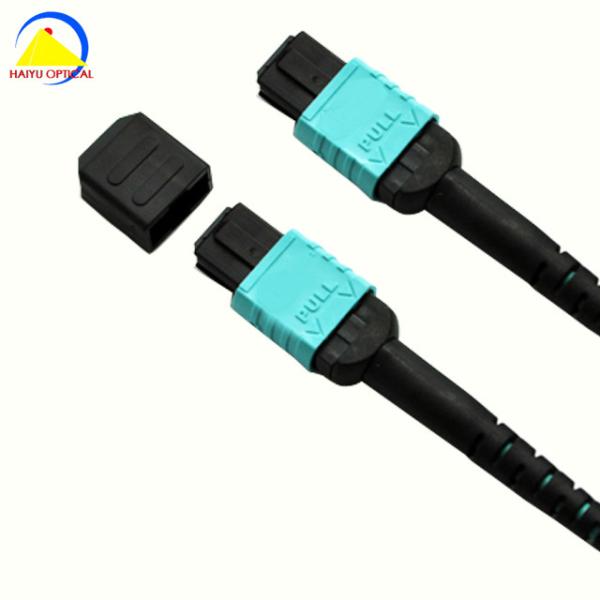

FTTX MTP MPO OM4 OM3 G652D Fiber Optic Fanout Cable

Name: FTTX MTP MPO OM4 OM3 G652D Fiber Optic Fanout Cable
Brand: Haiyu optical
Price: 19.99 USD

China FTTX MTP MPO OM4 OM3 G652D Fiber Optic Fanout Cable wholesale

Place of Origin : Guangdong, China, Guangdong China (Mainland)

Brand Name : Haiyu optical

Model Number : HYG-MTP-060201, HYG-MTP-060201

MOQ : 1-9 Pieces

Price : $19.99

Certification : ISO9001, CE, ROHS

Type : Fiber Optic Cable

Single-Mode Fiber : G652D

Multi-Mode Fiber : OM4 OM3

No. of Fiber : 12.

Use : FTTX

End face of polishing : PC UPC APC optional

Cable color : Aqua

Connector : MTP MPO

Cable diameter : 3.0

Insertion loss : <=0.7 dB

Product name : MTP MPO Fiber Optic Fanout cable

Selling Units : Single item

Single package size : 20X20X1 cm

Single gross weight : 0.300 kg

Package Type : Neutral Packing 500pcs/ctn

Contact Now

12 Core MTP MPO Multimode OM4 OM3 Plenum 50 Fiber Optic Fanout Cable

Specification:

PERFORMANCE INDEX
MPO CONNECTOR
Fiber type	SM		MM
	UPC	APC	PC
Insertion Loss (IL)Low(dB)	≤0.35		≤0.35
Insertion Loss (IL)Max(dB)	≤0.75		≤0.6
Return Loss (RL)(dB)	≥50	≥60	≥20
Endurance (500 remates)(dB)	IL<0.3		IL<0.2
Operating Temperature(℃)	-10 ~ +60
Storage Temperature(℃)	-40 ~ +85
Maximum tensile strengthe(N)	100

Description:

MPO/ multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber out. We also offer various other MPO products such as MPO cassettes, modules and enclosures. These cassettes provide secure transition between MPO and LC or SC connections.

Features:

1.High repeatability & credibility
2.Competitive price
3.Fast delivery time
4.Low insertion loss

Applications:

1,Optical fiber communications systems;
2,Optical fiber access network;
3,Optical fiber CATV.
4,Optical fiber test equipments;
5,Optical fiber data communications;
6,LAN
