Singlemode LSZH 2 Cores 1550nm SC LC Optical Patch Cord

Shenzhen Haiyu Optics Communication Equipment Co., Ltd.
Contact Now

Singlemode LSZH 2 Cores 1550nm SC LC Optical Patch Cord

Place of Origin : Guangdong, China

Brand Name : HYG

Model Number : HYG-LC-SC SM DX-01

Certification : ROHS

Supply Ability : 100000 Piece/Pieces per Day

Packaging Details : Carton or according to client requirement.

MOQ : 10 Piece/Pieces

Price : $2.50 - $12.50 / Piece

Operating Temperature : -40℃+80℃

Polishing : PC;UPC

Cable type : PVC;LSZH

Operating Wavelength : 1310/1550nm

Core number : Simplex or duplex

Cable diameter : 2.0/3.0/0.9mm

Delivery time : 3-5 days for MOQ

Fiber mode : SM

Cable length : 1.3.5m or customized

Port : Shenzhen

Contact Now

Custom length Singlemode 2 Cores Fiber Optic Patch Cord SC LC

Hello,

Thank you for viewing our page on Alibaba.com! We are a quality fiber optic cable manufacturer out of Shenzhen, China. Haiyu Optical holds ISO9001 certification and we are continually pushing the limits of increasing quality, outpacing our competitors. We have since grown to a team of dozens of individuals after our founding in 2008. We own and operate our own 1500 square meter factory in Shenzhen. Our products are all approved by UL, ROSH & CE.

Please reach out to us if you have any questions or if you would like to place an order. Thank you!

Singlemode LSZH 2 Cores 1550nm SC LC Optical Patch Cord

Single-Mode Fiber Multi-Mode Fiber
PC UPC APC PC
Insertion Loss ≤0.3 dB ≤0.3 dB ≤0.3 dB ≤0.3 dB
Return Loss ≥40 dB ≥50 dB ≥60 dB N/A
Operating Wavelength 1310nm & 1550nm 850nm & 1300 nm
Repeatability ≤0.1 dB
Working Temperature -20~+60°C
Service Life >1,000 mating cycles

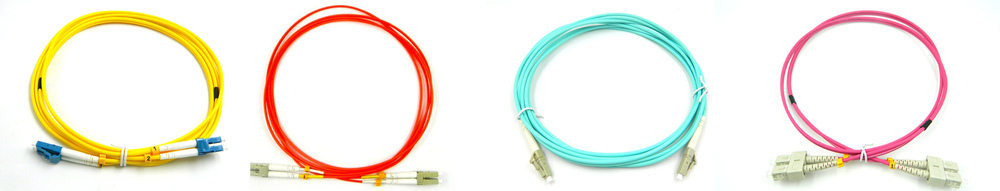

Fiber Manufacturers:

Fiber Type Manufacturer Colors Available
9/125 μm YOFC or Corning Yellow
50/125 or 62.5/125 μm YOFC or Corning Orange
OM3 or OM4 50/125 μm YOFC or Corning Aqua

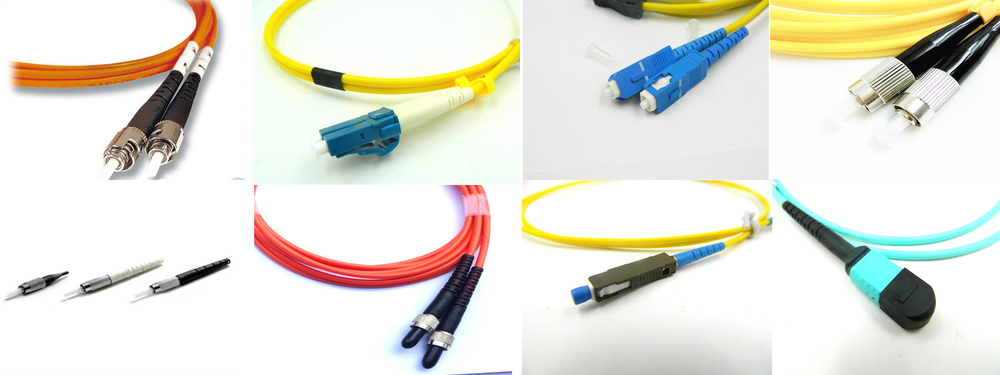

Optic Fiber Connector Options:

Singlemode LSZH 2 Cores 1550nm SC LC Optical Patch Cord

  • SC
  • LC
  • ST
  • FC
  • MTRJ
  • MU
  • SMA
  • E2000
  • D4
  • DIN
  • MPO
  • MTP

Fiber Optic Ferrule Polish Styles Options:

  • Physical Contact (PC)
  • Ultra Physical Contact (UPC)
  • Angled Physical Contact (APC)

Cable Jacket Options:

  • PVC - Polyvinyl Chloride
  • LSZH - Low Smoke Zero Halogen
  • OFNR- Optical fiber nonconductive riser
  • OFNP - Optical fiber nonconductive plenum
  • HYTREL

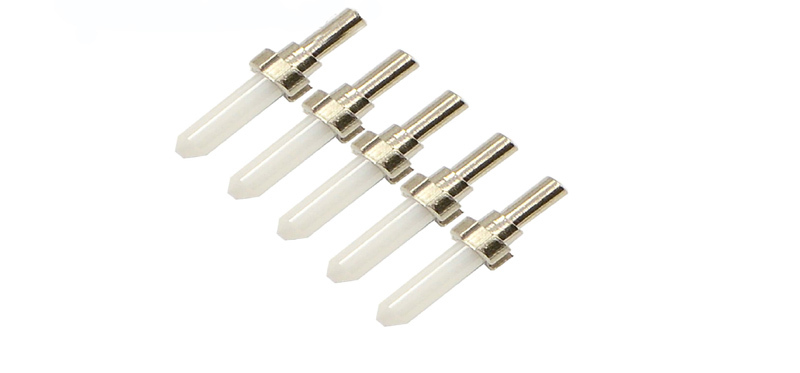

Ferrules:

Singlemode LSZH 2 Cores 1550nm SC LC Optical Patch Cord

  • We machine our ceramic ferrules with great precision using zircnium dioxide
  • Each ferrule has a beautiful end face polishing and full inspection prior to terminating to the cable
  • Low insertion loss and high return loss
  • High stability and repeat
  • In accordance with Telcordia GR-326-CORE Standards

Product Application:

Singlemode LSZH 2 Cores 1550nm SC LC Optical Patch Cord

  • Local Area Network (LAN)
  • Datacenter
  • Telecommunication Optic Transmission Network
  • Optical Access Network (OAN)
  • Active Device Termination
  • CATV
  • Fiber Optic Data Transmission (FODT)

Mechanical Testing:

Vibration 10-55Hz
0.75mm Single Amplitude
30 Minutes Each Direction
Drop Test Dropped from 1M, 5x
Durability 1000 Insertions
Anti-Pull Power 90N

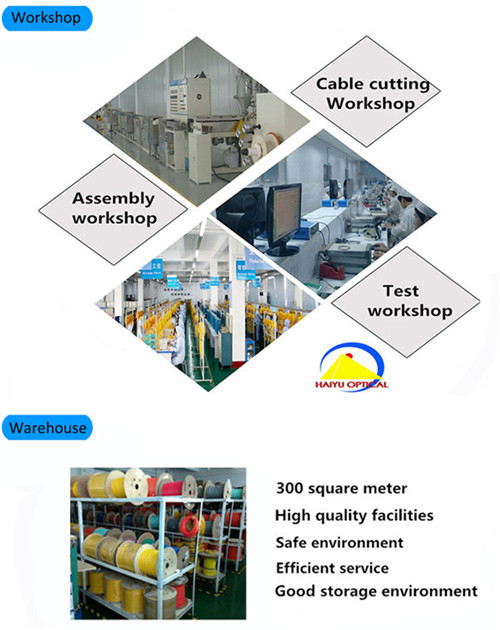

About our company

Singlemode LSZH 2 Cores 1550nm SC LC Optical Patch CordSinglemode LSZH 2 Cores 1550nm SC LC Optical Patch CordSinglemode LSZH 2 Cores 1550nm SC LC Optical Patch CordSinglemode LSZH 2 Cores 1550nm SC LC Optical Patch Cord

After-Sales Service

Singlemode LSZH 2 Cores 1550nm SC LC Optical Patch Cord

OEM & ODM is accepted, any questions welcome to contact us.

Sales Manager: Joyce Tan

Phone: 86 13066935405

Tel: 86 755 29467029

Email: hyglink[a]hyglink.com

Skype: joycetan75

Weichat: tan_aihua
