Place of Origin : Guangdong, China
Brand Name : Haiyu optical
Model Number : HYG-AD-SC-SX-B-03
Certification : RoHS
MOQ : 10-99 Pieces
Price : $0.30
Type : Fiber Adapter & Connectors
No. of Fiber : 1.
Use : FTTX
Color : beige
Insertion loss : SM=<0.2dB
reflection attenuation : PC>= 45 dB, UPC>= 50 dB, APC>= 65 dB
Interchangeability : ≤0.20 dB
Repeatability : ≤0.10 dB
Storage temperature : -40~85℃
Product name : Fiber Optic Adapter
Application : Telecommunication
Warranty : 1 Year
Selling Units : Single item
Single package size : 3X2X2 cm
Single gross weight : 0.050 kg
Package Type : polybag, blister box, carton box
Adapters (Sc-Sc) Upc Fiber Optic Adapters Sc Mm Beige With Flange
Fiber optic adapter is also called fiber optic coupler. It is used to provide a cable to cable fiber connection. People sometimes also name them to be mating sleeves and hybrid adaptors. Mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while hybrid adaptors are the fiber optic cable adaptor types used to connect different kinds of fiber optic connectors. We provide a complete line of adapters for fiber optic connection, like ST, SC, FC, LC, MTRJ, MPO, MU, SMA, E2000, DIN style fiber optic adapters for both multimode and single-mode fiber applications.
CATV
Telecommunication networks
Local Area Networks (LANs)
Metro networks
Data processing networks
Industrial, military and medical
Compact design
Telcordia, TIA/IEA, IEC and JIS compliance
High precision alignment
Low insertion and return loss and back reflection
Choice of metal or plastic housing, mount style & flange options
Repeatability: ≥1000 times
Insert loss: SM ≤0.2 dB, MM ≤ 0.3 dB
Compatibility: ≤ 0.2 dB
| Parameter | Unit | SC | | | | |||
| | | SM | | | MM | |||
| | | PC | UPC | APC | PC | |||
| Insertion loss | dB | ≤0.2 | ≤0.1 | ≤0.2 | ≤0.2 | |||
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | |||
| Interchangeability | dB | ≤0.2 | | | | |||
| Repeatability | dB | ≤0.2 | | | | |||
| Mechanical endurance | Time | >1000 | | | | |||
| Operating temperature | °C | -40~75 | | | | |||
| Storage temperature | °C | -45~85 | | | | |||
The SC Optical fiber adapters has simplex, duplex, hybrid types. According to shape, it has flange, flangeless, inner shutter, external shutter, etc.
According to color, it has blue, green, beige, black, aqua, purple etc.
The normal housing material is plastic, also has metal housing.
20pcs/box, also can pack in PE bag if you required.
Use hign strong carton to protect the goods.
Haiyu optical has award ISO CE and Rosh certificate for our products.
|

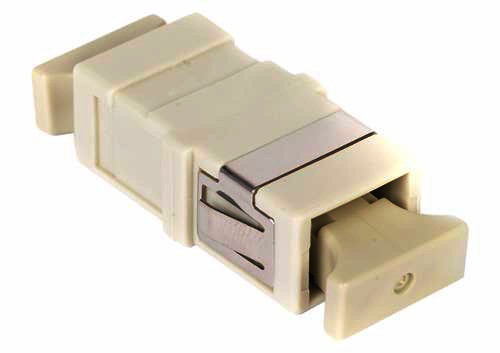

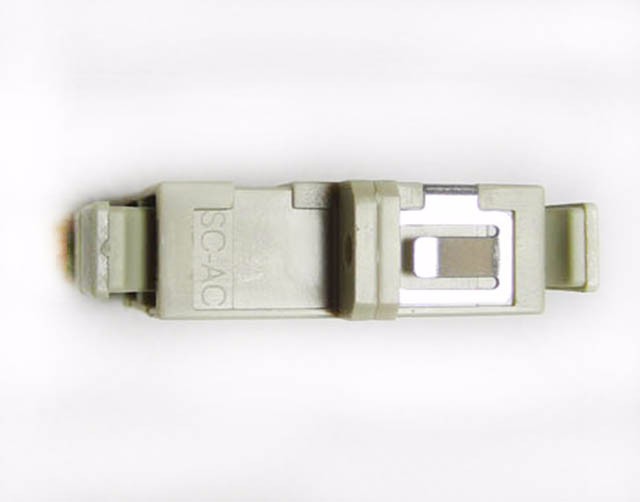

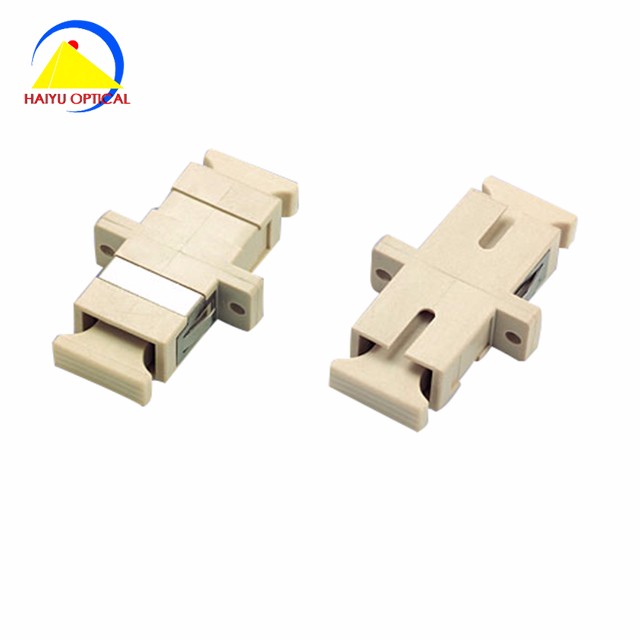

Beige Flange Sc-Sc Upc Fiber Optic Adapter For FTTX Images |
