MM OM4 SC PC Flange Optical Fiber Adaptor Simplex Aqua

Shenzhen Haiyu Optics Communication Equipment Co., Ltd.
Contact Now

MM OM4 SC PC Flange Optical Fiber Adaptor Simplex Aqua

Place of Origin : Guangdong, China

Brand Name : Haiyu optical

Model Number : HYG-AD-SC-DX-B-02

MOQ : 10-99 Pieces

Price : $0.40

Color : aqua

Model : Simplex

Insertion loss : SM=<0.2dB

reflection attenuation : PC>= 45 dB, UPC>= 50 dB, APC>= 65 dB

Interchangeability : ≤0.20 dB

Repeatability : ≤0.10 dB

Storage temperature : -40~85℃

Selling Units : Single item

Single package size  : 3X2X2 cm

Single gross weight : 0.010 kg

Package Type : polybag, blister box, carton box

Contact Now

MM OM3/4 10gig SC/PC Simplex aqua with flange optical fiber Adaptor
Product Description

OM3/OM4 aqua simplex SC adapter

Fiber optic adapter is also called fiber optic coupler. It is used to provide a cable to cable fiber connection. People sometimes also name them to be mating sleeves and hybrid adaptors. Mating sleeves means this fiber optic adapter is used to connect the same type fiber optic connectors, while hybrid adaptors are the fiber optic cable adaptor types used to connect different kinds of fiber optic connectors. We provide a complete line of adapters for fiber optic connection, like ST, SC, FC, LC, MTRJ, MPO, MU, SMA, E2000, DIN style fiber optic adapters for both multimode and single-mode fiber applications.

Features

CATV
Telecommunication networks
Local Area Networks (LANs)
Metro networks
Data processing networks
Industrial, military and medical

Application

Compact design
Telcordia, TIA/IEA, IEC and JIS compliance
High precision alignment
Low insertion and return loss and back reflection
Choice of metal or plastic housing, mount style & flange options

Specifications

Repeatability: ≥1000 times
Insert loss: SM ≤0.2 dB, MM ≤ 0.3 dB
Compatibility: ≤ 0.2 dB

Parameter
Unit
SC
SM
MM
PC
UPC
APC
PC
Insertion loss
dB
≤0.2
≤0.1
≤0.2
≤0.2
Return Loss
dB
≥45
≥50
≥60
≥30
Interchangeability
dB
≤0.2
Repeatability
dB
≤0.2
Mechanical endurance
Time
>1000
Operating temperature
°C
-40~75
Storage temperature
°C
-45~85

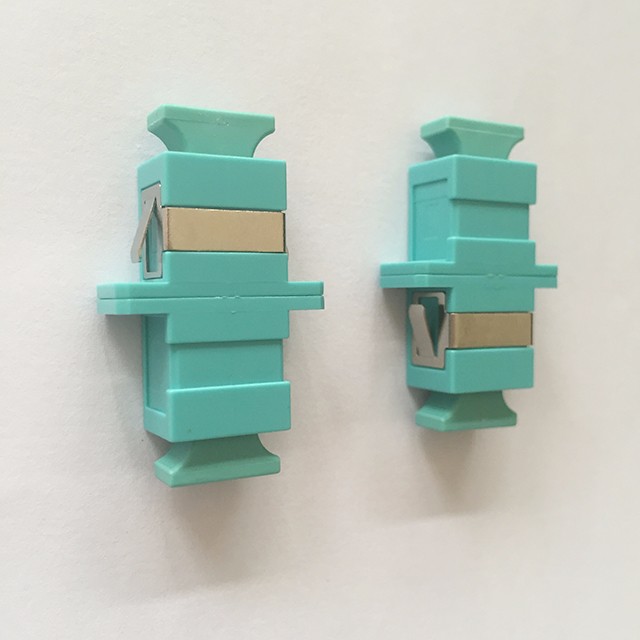

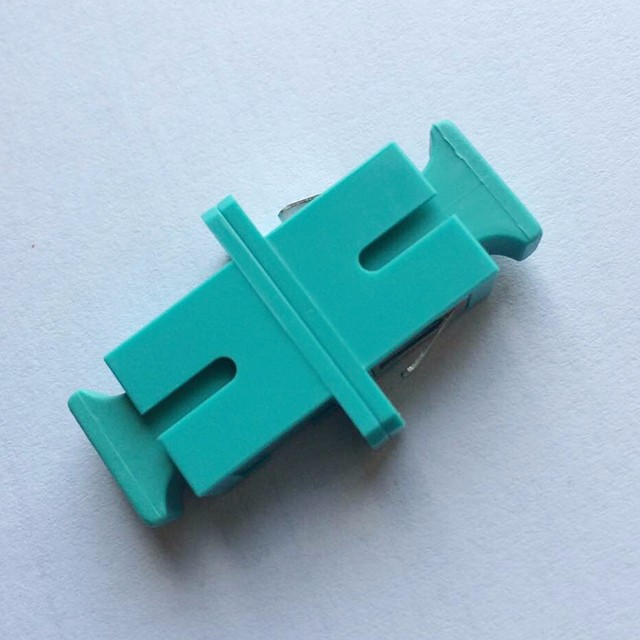

Detailed Images
MM OM4 SC PC Flange Optical Fiber Adaptor Simplex Aqua
MM OM4 SC PC Flange Optical Fiber Adaptor Simplex Aqua
MM OM4 SC PC Flange Optical Fiber Adaptor Simplex Aqua
MM OM4 SC PC Flange Optical Fiber Adaptor Simplex Aqua
MM OM4 SC PC Flange Optical Fiber Adaptor Simplex Aqua

Related Products

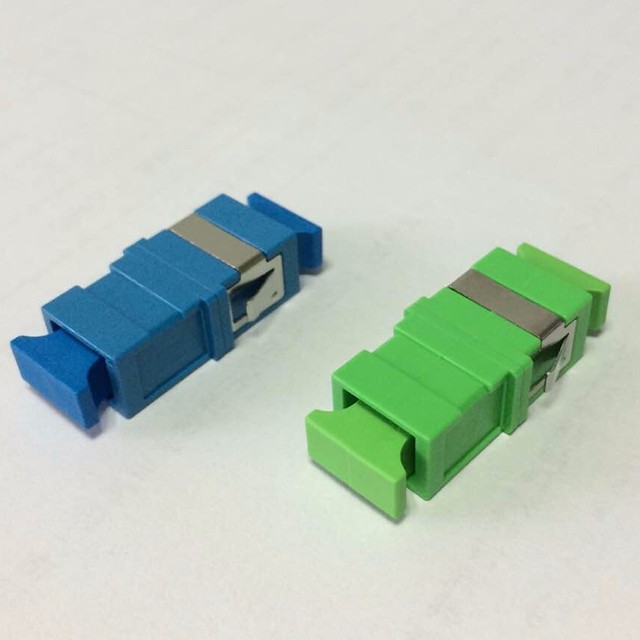

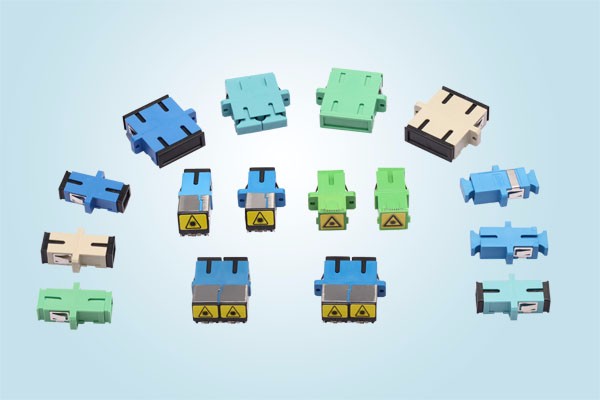

SC adapters family.

The SC Optical fiber adapters has simplex, duplex, hybrid types. According to shape, it has flange, flangeless, inner shutter, external shutter, etc.

According to color, it has blue, green, beige, black, aqua, purple etc.

The normal housing material is plastic, also has metal housing.

MM OM4 SC PC Flange Optical Fiber Adaptor Simplex Aqua
MM OM4 SC PC Flange Optical Fiber Adaptor Simplex Aqua
MM OM4 SC PC Flange Optical Fiber Adaptor Simplex Aqua
MM OM4 SC PC Flange Optical Fiber Adaptor Simplex Aqua

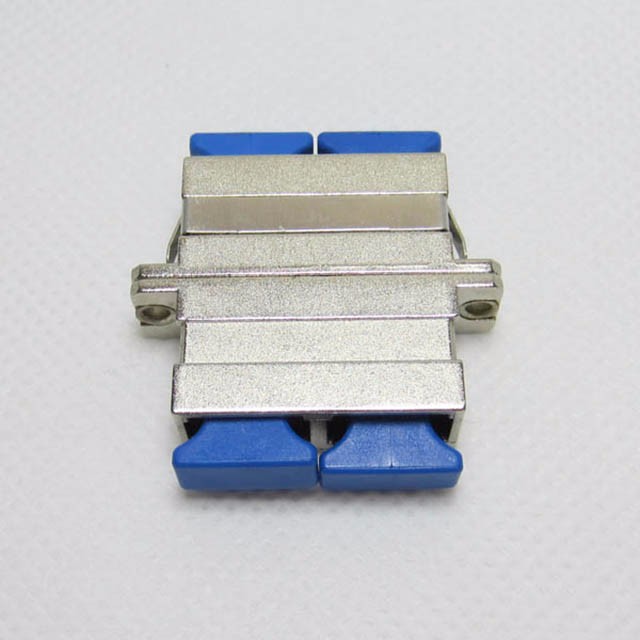

Metal housing type

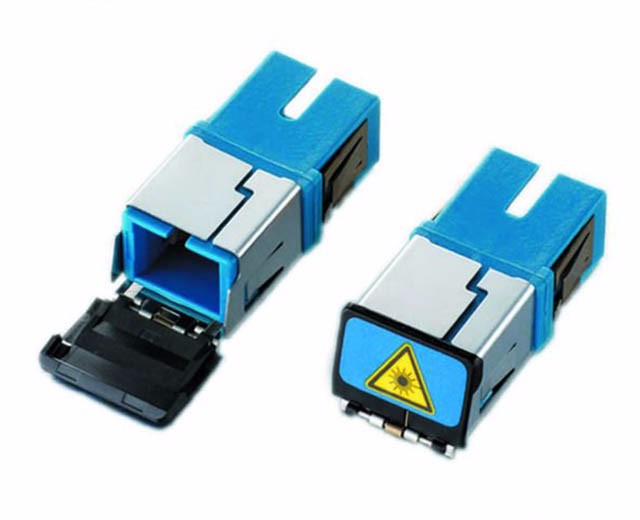

Shutter type

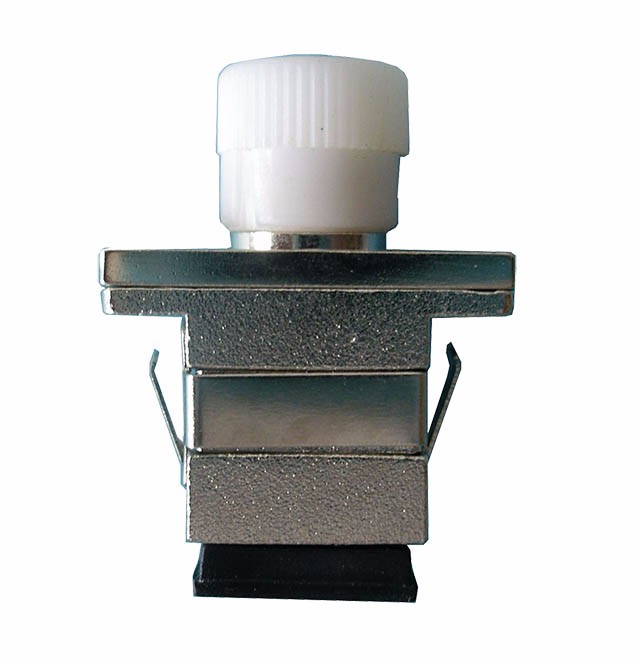

FC-SC hybrid type

Packing & Delivery
MM OM4 SC PC Flange Optical Fiber Adaptor Simplex Aqua
MM OM4 SC PC Flange Optical Fiber Adaptor Simplex Aqua

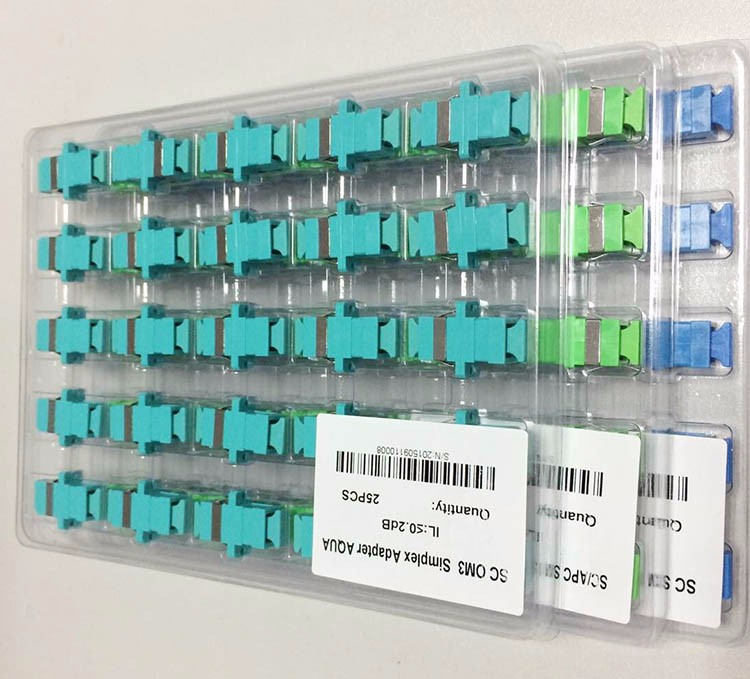

Blister box.

20pcs/box, also can pack in PE bag if you required.

Carton.

Use hign strong carton to protect the goods.

Certifications
MM OM4 SC PC Flange Optical Fiber Adaptor Simplex Aqua

Haiyu optical certificate.

Haiyu optical has award ISO CE and Rosh certificate for our products.

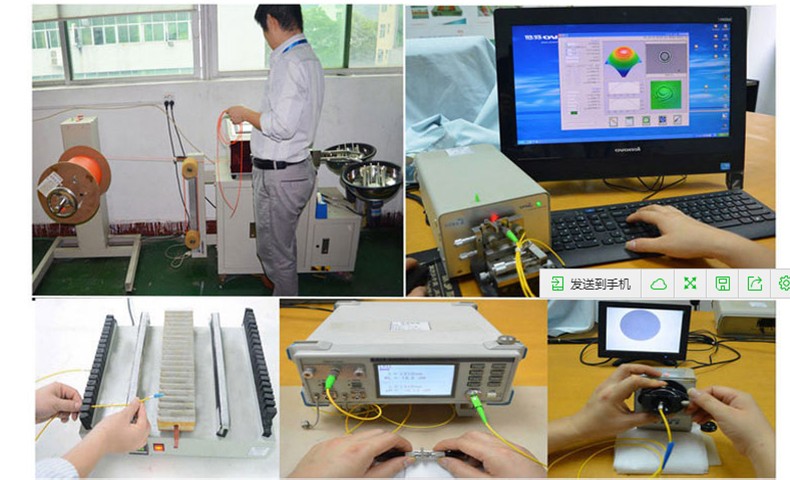

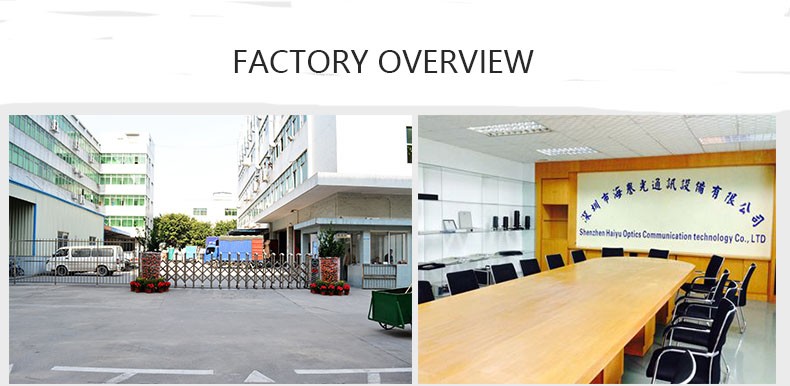

Our Company
MM OM4 SC PC Flange Optical Fiber Adaptor Simplex Aqua
MM OM4 SC PC Flange Optical Fiber Adaptor Simplex Aqua
MM OM4 SC PC Flange Optical Fiber Adaptor Simplex Aqua
Contact US
MM OM4 SC PC Flange Optical Fiber Adaptor Simplex Aqua

OEM & ODM is accepted, any questions welcome to contact us.
Sales Manager: Joyce Tan
Phone: 86 13066935405
Tel: 86 755 29467029
Email: hyglink[a]hyglink.com
Skype: joycetan75
Weichat: tan_aihua
