MPO MTP SC LC FC ST Pc Upc Apc OM3 OM4 Fiber Optic Pigtail

Name: MPO MTP SC LC FC ST Pc Upc Apc OM3 OM4 Fiber Optic Pigtail
Brand: Haiyu Optical
Price: 15.08 USD

China MPO MTP SC LC FC ST Pc Upc Apc OM3 OM4 Fiber Optic Pigtail wholesale

Place of Origin : Guangdong, China

Brand Name : Haiyu Optical

Model Number : HYG-MPO--OM3-1.5M

Supply Ability : 5000 Piece/Pieces per Week

Packaging Details : polybag, carton

MOQ : 1 Piece/Pieces

Price : $15.08 - $35.80 / Piece

Cable Color : aqua

Core quanlity : 12

Cable mode : OM3

Length : 1.5M

Wire diameter : 3.0 mm

Insertion loss : <=7.5 dB

Return loss : >=35 dB

Connector type : MPO MTP SC LC FC ST

Operating temp range : -40~85°C

Wavelength : 850 nm

Port : Shenzhen

Contact Now

Product Description

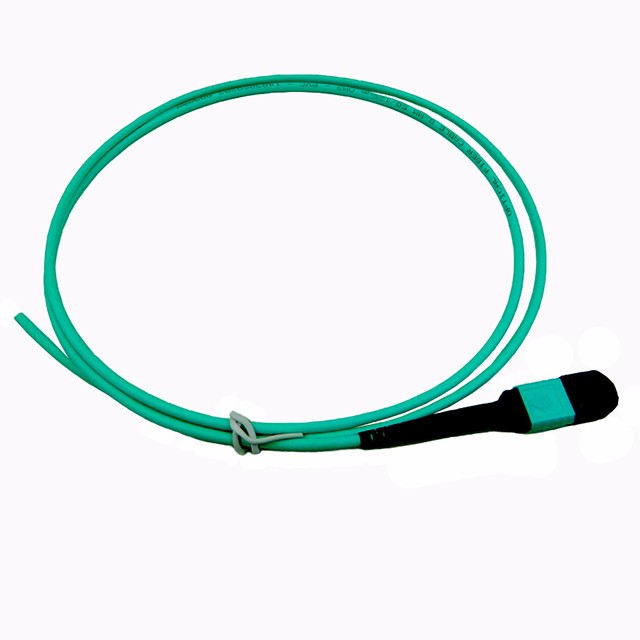

MPO MTP SC LC FC ST Pc Upc Apc OM3 OM4 Fiber Optic Pigtail

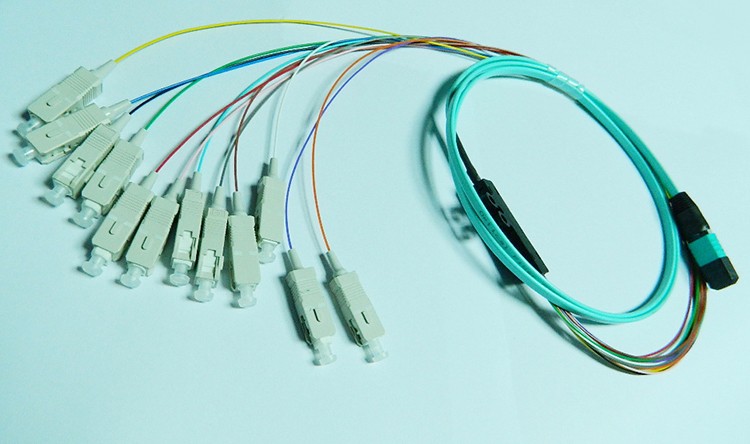

MPO to SC LC FC ST fiber optic Pigtail

MPO/ multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber out. We also offer various other MPO products such as MPO cassettes, modules and enclosures. These cassettes provide secure transition between MPO and LC or SC connections.

PERFORMANCE INDEX
MPO CONNECTOR
Fiber type	SM		MM
	UPC	APC	PC
Insertion Loss (IL)Low(dB)	≤0.35		≤0.35
Insertion Loss (IL)Max(dB)	≤0.75		≤0.6
Return Loss (RL)(dB)	≥50	≥60	≥20
Endurance (500 remates)(dB)	IL<0.3		IL<0.2
Operating Temperature(℃)	-10 ~ +60
Storage Temperature(℃)	-40 ~ +85
Maximum tensile strengthe(N)	100

Features

1.High repeatability & credibility
2.Competitive price
3.Fast delivery time
4.Low insertion loss

Applications:

1,Optical fiber communications systems;
2,Optical fiber access network;
3,Optical fiber CATV.
4,Optical fiber test equipments;
5,Optical fiber data communications;
6,LAN

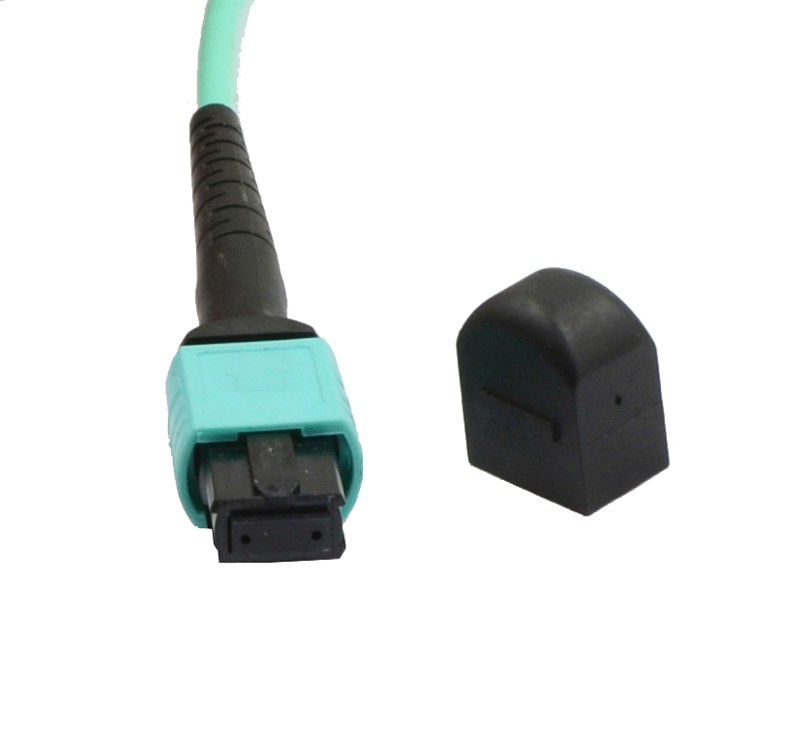

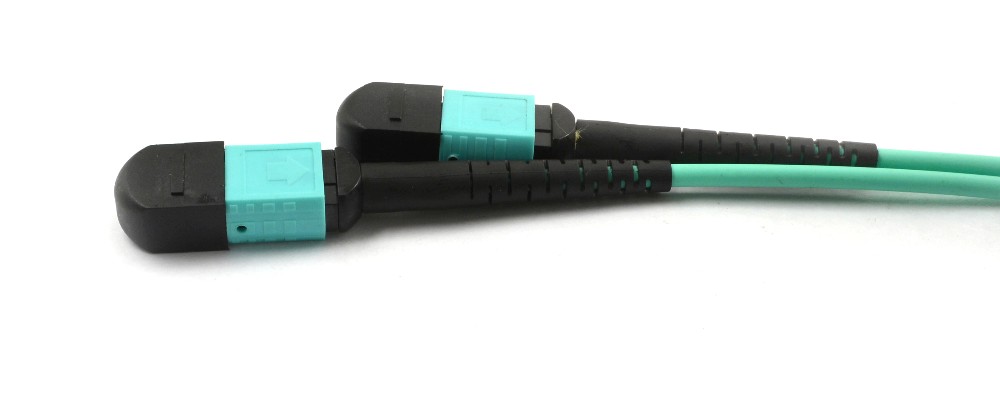

Detailed Images

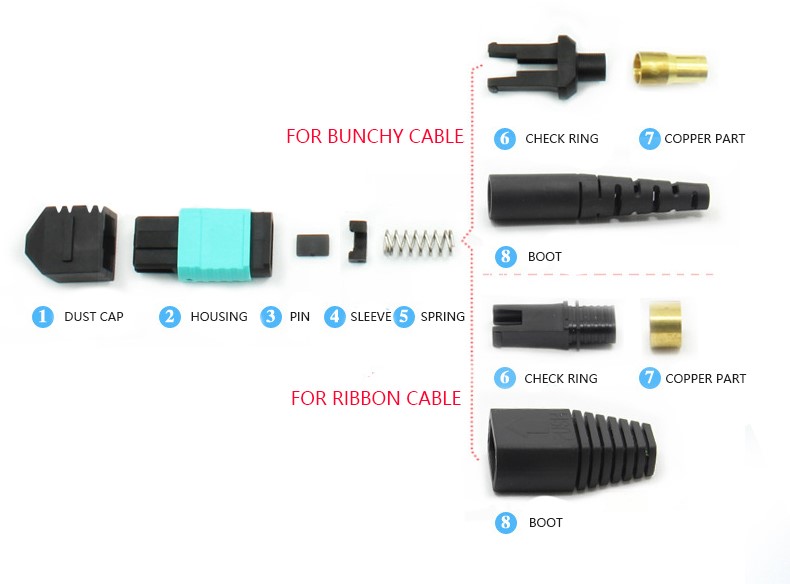

MPO Connector Componts

Click here to see more products.

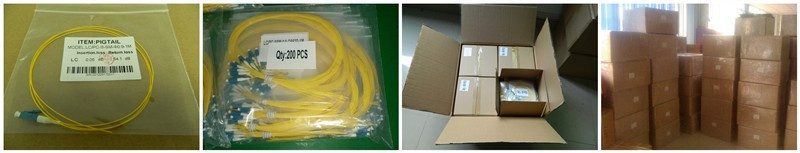

Packing & Delivery

Relicable Package.

Each Mpo cable good packed with PE bag with label and test report, then use high quality carton and plastic film to protect from strike and water.

Fast Delivery.

Fast and safty delivery cooperated with alibaba. 1~4 days to USA, 1~2 days to Japan, Korea and Southeast Asia, 4-7 days to Europe, South America and Africa.

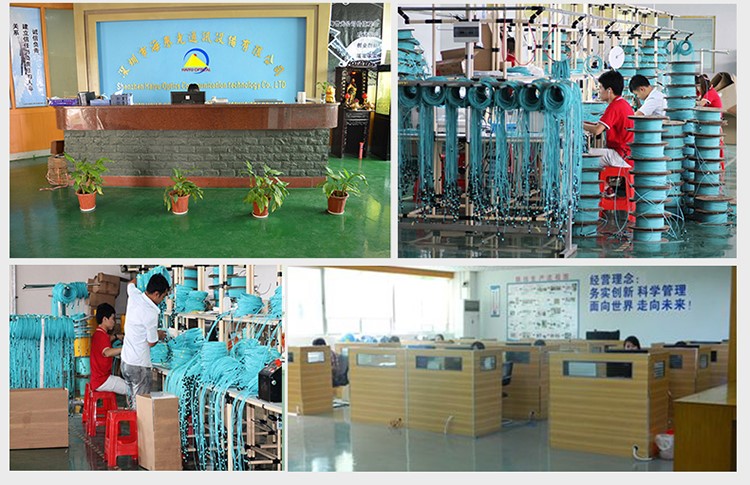

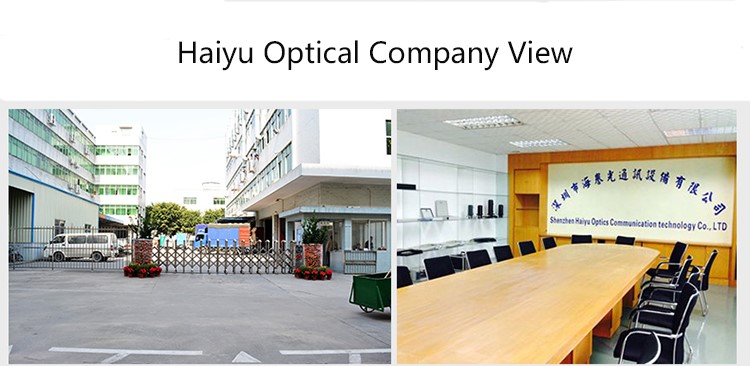

Our Company

Haiyu Optics, founded in 2007, is focus on design and manufactured fiber optic communication products. It has developed a range of
products including fiber optics like patch cord, adapters attenuator and splitters, optical transceiver modules, media converter, video
transmitter &receiver and FTTH equipments. Widely used in telecom communication, mobile communication, network solution and television

Milestones
2007 Haiyu optics communications technology co., ltd was established in Hongkong.
2009 Shenzhen Haiyu optics communication equipment co., ltd was established in Shenzhen China

Plant area and No. of employees
Amount 2,000 Square meters, around 300 employees in total.

Quality Assurance

Our ISO9001:2008 certified quality management systems have been refined for flexibility and efficiency, and produce a high quality, high
reliability, low cost and diverse product range.

All our products are compliant with Rohs , CE and 5S system.

Click here for more.

OEM & ODM is accepted, any questions welcome to contact us.
