Flangeless LC Fiber Optic Adapter 10G MM OM3 Aqua Duplex FTTH

Product Categories
Shenzhen Haiyu Optics Communication Equipment Co., Ltd.
Contact Now

Flangeless LC Fiber Optic Adapter 10G MM OM3 Aqua Duplex FTTH

  • 1
  • 2

Brand Name : Haiyu Optical

Model Number : HYG-ADP-LC-015

Certification : CE, ISO9001, Rohs

Place of Origin : China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, L/C

Supply Ability : 5000pcs per day

Delivery Time : 2-3 working days

Packaging Details : Packed in Blister box and carton

Product name : LC Adaptors

Color : Aqua

Insertion loss : ≤0.2dB

Model : Flangeless

Type : Internal Shutter Type

Application : FTTH FTTB FTTX Network

Contact Now

10G MM OM3 Aqua Duplex flangeless LC Dust Protection Built-in Adapter

This LC Duplex Adaptors with Internal Plastic Dust Cover is designed to cover the entire coupler hole. These unique adapters virtually eliminate eye exposure to lasers and provide maximum protection from dust and other contaminants. The swing shutter automatically opens as the LC connector is inserted, and closes as it is extracted.

LC Adaptors Specifications:

Item LC Adaptors
Mode Single mode Multimode
Housing Color APC=Green,PC=Blue Beige / Aqua / Violet
Main Body Material Plastic
Sleeve Zirconia
Typical Insertion Loss(dB) ≦ 0.15dB
Durability < 0.2dB change, 500mating
Operating Temp. -40℃ ~ +75℃
Storage Temp. -40℃ ~ +85℃

LC Adaptors Features:

  • Duplex and Quad model available
  • Rattle-free metal latch for fixed fit
  • Laser protection and white translucent shutter type available
  • RoHS and REACH compliant
  • IEC61754, TIA/EIA 604-10A, and GR-326-CORE compliant

LC Adaptors Application:

  • Telecommunication networks
  • Local Area Networks (LANs)
  • Metro networks
  • Data processing networks
  • Catv

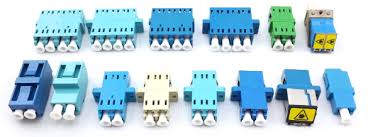

LC Adaptors Pictures:

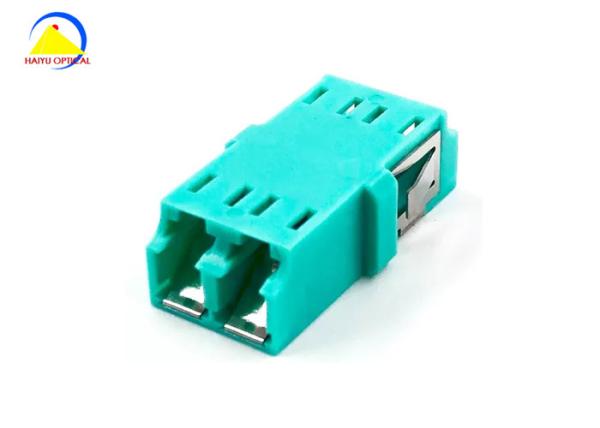

Flangeless LC Fiber Optic Adapter 10G MM OM3 Aqua Duplex FTTH


Product Tags:

Flangeless LC Fiber Optic Adapter



10G MM Fiber Optic Adapter



MM OM3 Duplex Optic Adapter


China Flangeless LC Fiber Optic Adapter 10G MM OM3 Aqua Duplex FTTH wholesale

Flangeless LC Fiber Optic Adapter 10G MM OM3 Aqua Duplex FTTH Images
